跨周期kdj指标计算异常问题求助

Params
	//此处添加参数
    Numeric FastLength(12);
	Numeric SlowLength(26);
	Numeric MACDLength(9);
    Numeric Length(9);
    Numeric SlowLength_kdj(3);
    Numeric SmoothLength(3);
    Numeric Length_rsi_short(6);
    Numeric Length_rsi_long(24);

Vars
	//此处添加变量
	Series<Numeric> MACDDiff;
	Series<Numeric> AvgMACD;
	Series<Numeric> MACDValue;
	Plot pen1;
	Plot pen2;
	Global Numeric i1;
	Global Numeric i2;

	Numeric HighestValue ;
    Numeric LowestValue ;
    Numeric k;

	Series<Numeric> kValue;     // K值
    Series<Numeric> DValue;     // D值
    Series<Numeric> JValue;     // J值



Defs
	//此处添加公式函数
	Numeric SMAValue(Numeric Price,Numeric Length,Numeric Weight)
    {
        if(InvalidNumeric == Price || InvalidNumeric == Length || InvalidNumeric == Weight)
        {
            return InvalidNumeric;
        }
        return SMA(Price,Length,Weight);
    }
Events
	//此处实现事件函数

	//初始化事件函数，策略运行期间，首先运行且只有一次
	OnInit()
	{
		i1= SubscribeBar(Symbol,"5m",BeginDateTime,0,Enum_Data_FullPeriod);
		i2= SubscribeBar(Symbol,"30m",BeginDateTime,0,Enum_Data_FullPeriod);
		Data[i1].AddDataFlag(Enum_Data_EndTime);
		Data[i2].AddDataFlag(Enum_Data_EndTime);

	}
	OnReady()
	{
		SetBackBarMaxCount(1+Max(Max(Length,SlowLength),SmoothLength));
	}

	//Bar更新事件函数，参数indexs表示变化的数据源图层ID数组
	OnBar(ArrayRef<Integer> indexs)
	{


		//5分钟周期图指标计算--kdj,
		Range[i1:i1]
        {
            HighestValue = HighestFC(High, Length);
            LowestValue = LowestFC(Low, Length);
            k = (Close - LowestValue)/(HighestValue-LowestValue)*100;
            kValue = SMAValue(k,SlowLength,1);
            DValue = SMAValue(KValue,SmoothLength,1);
            JValue = 3*kValue - 2*DValue;

            Commentary("HighestValue="+Text(HighestValue));
            Commentary("LowestValue="+Text(LowestValue));
            Commentary("k="+Text(k));
            Commentary("KValue="+Text(KValue));
            Commentary("DValue="+Text(DValue));
        }

		//30分钟周期指标计算
		Range[i2:i2]
        {

			HighestValue = HighestFC(High, Length);
            LowestValue = LowestFC(Low, Length);
            k = (Close - LowestValue)/(HighestValue-LowestValue)*100;
            kValue = SMAValue(k,SlowLength,1);
            DValue = SMAValue(KValue,SmoothLength,1);

            Commentary("HighestValue="+Text(HighestValue));
            Commentary("LowestValue="+Text(LowestValue));
            Commentary("k="+Text(k));
            Commentary("KValue="+Text(KValue));
            Commentary("DValue="+Text(DValue));

        }


	}

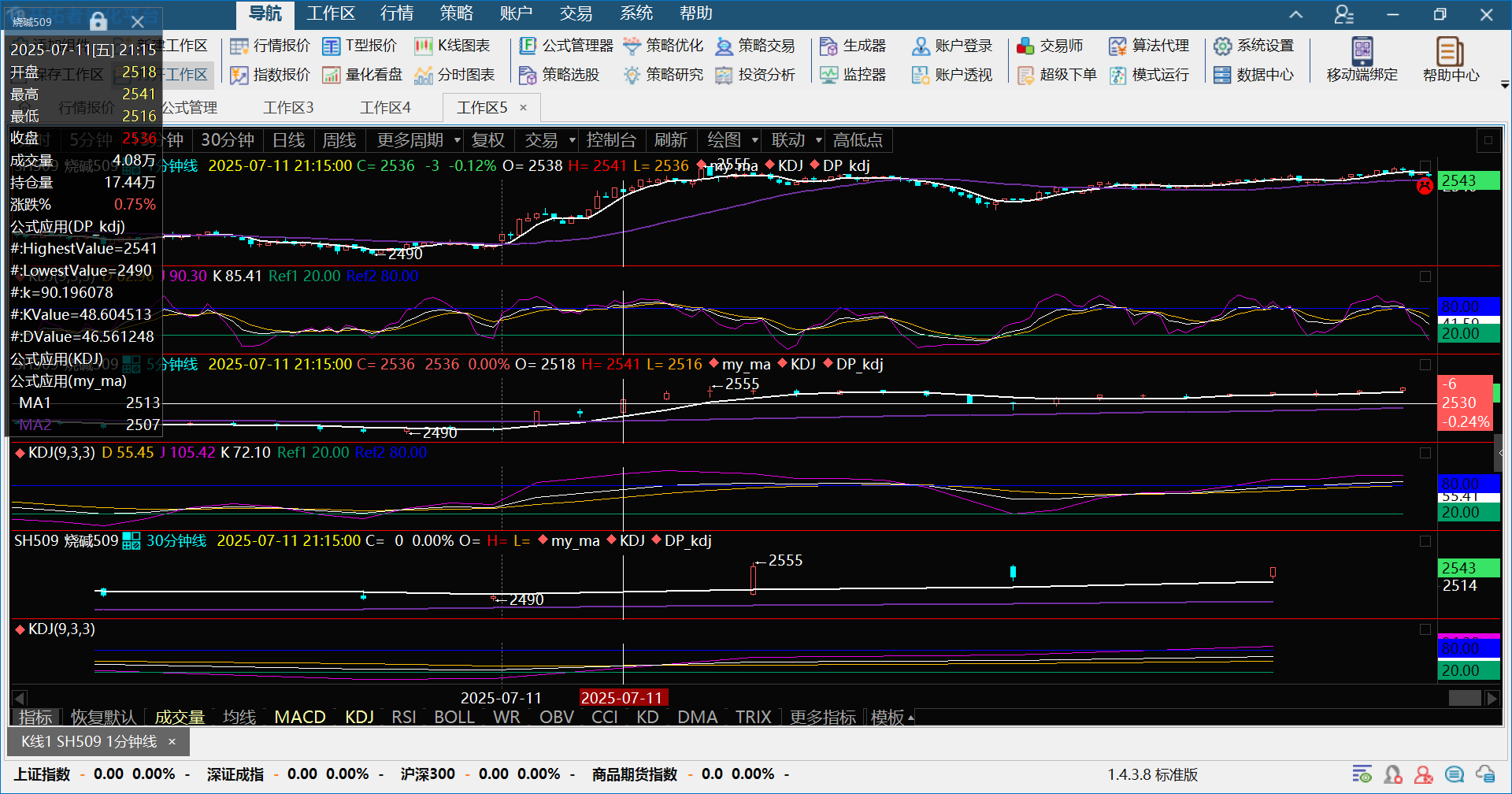

老师您好，分别订阅了1分钟，5分钟，30分钟周期，然后在5分钟和30分钟周期计算kdj指标，但计算出来的kdj指标值与实际的kdj值存在较大差异，如下图所示，在5分钟周期图上，计算出来的kvalue是48.60，DValue是46.56，而通过加载系统的kdj公式可以看到k值是72.10，D值是55.45.

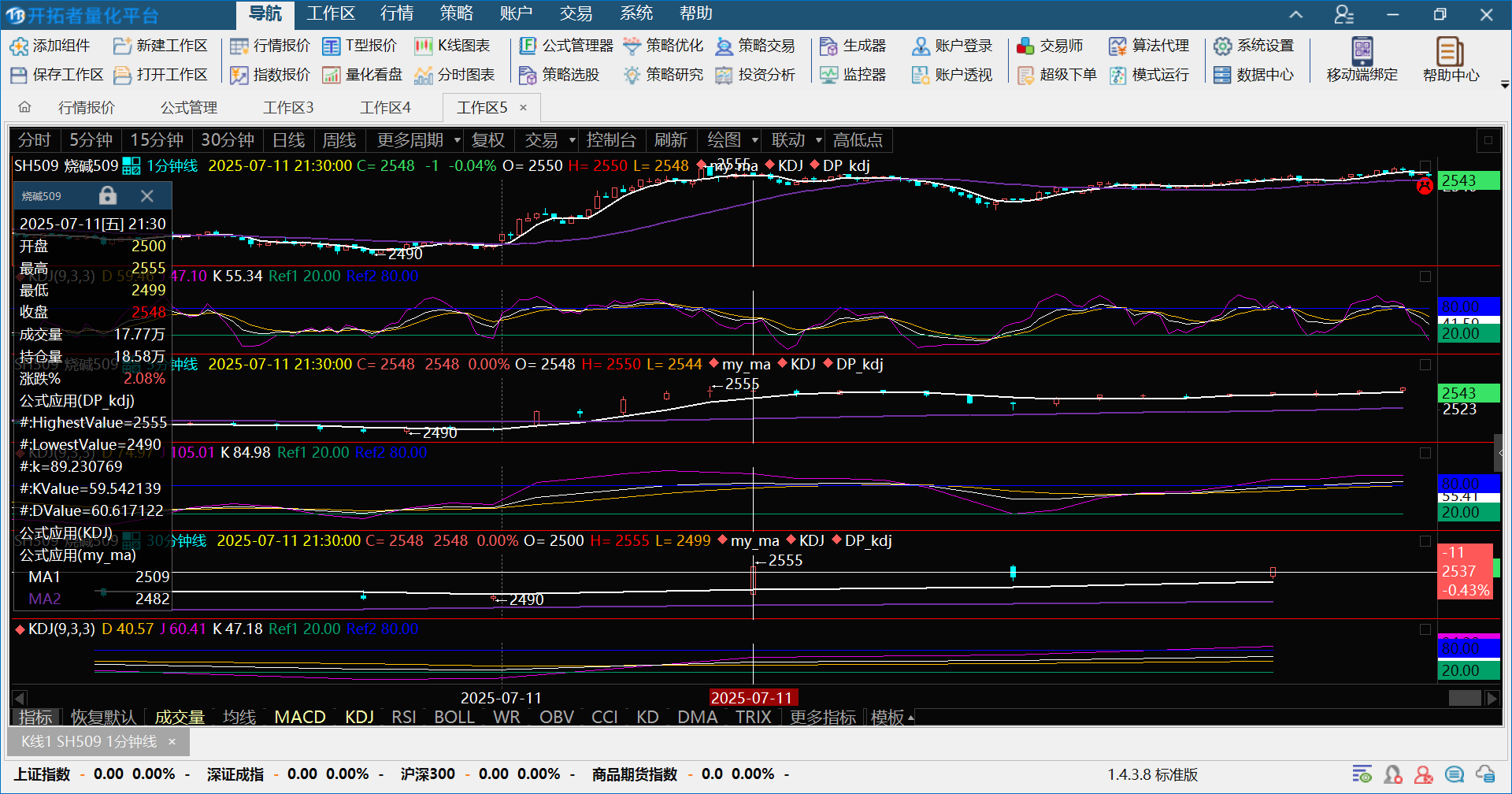

在30分钟周期图上，计算出来的kvalue是59.54，DValue是60.61，而通过加载系统的kdj公式可以看到k值是47.18，D值是40.57。请老师帮忙看一下是哪里出现了问题，多谢！

跨周期指标调用回测问题

跨周期指标应用方法

跨周期策略的指标数据延迟问题

跨周期引用如何在小周期实时显示大周期指标？

//------------------------------------------------------------------------

// 简称: KDJ_MACD

// 名称: 多周期KDJ与MACD策略

// 类别: 策略应用

// 类型: 内建应用

//------------------------------------------------------------------------

Params

Numeric FastLength(12);

Numeric SlowLength(26);

Numeric MACDLength(9);

Numeric Length(9); // KDJ周期

Numeric SlowLength_kdj(3); // KDJ的K值平滑周期

Numeric SmoothLength(3); // KDJ的D值平滑周期

Numeric Length_rsi_short(6);

Numeric Length_rsi_long(24);

Vars

Series<Numeric> MACDDiff;

Series<Numeric> AvgMACD;

Series<Numeric> MACDValue;

Plot pen1;

Plot pen2;

Global Numeric i1;

Global Numeric i2;

// KDJ计算变量 - 5分钟周期

Series<Numeric> kValue_5m; // 5分钟K值

Series<Numeric> DValue_5m; // 5分钟D值

Series<Numeric> JValue_5m; // 5分钟J值

// KDJ计算变量 - 30分钟周期

Series<Numeric> kValue_30m; // 30分钟K值

Series<Numeric> DValue_30m; // 30分钟D值

Series<Numeric> JValue_30m; // 30分钟J值

// 中间计算值

Numeric HighestValue_5m;

Numeric LowestValue_5m;

Numeric k_5m;

Numeric HighestValue_30m;

Numeric LowestValue_30m;

Numeric k_30m;

Defs

Numeric SMAValue(Numeric Price,Numeric Length,Numeric Weight)

{

if(InvalidNumeric == Price || InvalidNumeric == Length || InvalidNumeric == Weight)

{

return InvalidNumeric;

}

return SMA(Price,Length,Weight);

}

Events

OnReady()

{

SetBackBarMaxCount(1+Max(Max(Length,SlowLength),SmoothLength));

Range[0:DataSourceSize() - 1]

{

// 设置KDJ指标显示选项

setPlotOption("K_5m", "begin-bar", SlowLength_kdj);

setPlotOption("D_5m", "begin-bar", SmoothLength);

setPlotOption("J_5m", "begin-bar", SmoothLength);

setPlotOption("K_30m", "begin-bar", SlowLength_kdj);

setPlotOption("D_30m", "begin-bar", SmoothLength);

setPlotOption("J_30m", "begin-bar", SmoothLength);

// 设置MACD指标显示选项

setPlotOption("MACD", "begin-bar", FastLength + MACDLength);

setPlotOption("Signal", "begin-bar", FastLength + MACDLength);

setPlotOption("Histogram", "begin-bar", FastLength + MACDLength);

}

OnBar(ArrayRef<Integer> indexs)

{

// 5分钟周期图指标计算

Range[i1:i1]

{

// KDJ计算

HighestValue_5m = HighestFC(High, Length);

LowestValue_5m = LowestFC(Low, Length);

k_5m = (Close - LowestValue_5m)/(HighestValue_5m-LowestValue_5m)*100;

kValue_5m = SMAValue(k_5m, SlowLength_kdj, 1);

DValue_5m = SMAValue(kValue_5m, SmoothLength, 1);

JValue_5m = 3*kValue_5m - 2*DValue_5m;

// 绘制KDJ指标

PlotNumeric("K_5m", kValue_5m);

PlotNumeric("D_5m", DValue_5m);

PlotNumeric("J_5m", JValue_5m);

PlotNumeric("Ref1_5m", 20);

PlotNumeric("Ref2_5m", 80);

// 输出计算过程

Commentary("5分钟周期:");

Commentary("HighestValue_5m="+Text(HighestValue_5m));

Commentary("LowestValue_5m="+Text(LowestValue_5m));

Commentary("k_5m="+Text(k_5m));

Commentary("kValue_5m="+Text(kValue_5m));

Commentary("DValue_5m="+Text(DValue_5m));

Commentary("JValue_5m="+Text(JValue_5m));

// MACD计算

MACDDiff = EMA(Close, FastLength) - EMA(Close, SlowLength);

AvgMACD = EMA(MACDDiff, MACDLength);

MACDValue = MACDDiff - AvgMACD;

// 绘制MACD指标

PlotNumeric("MACD", MACDDiff);

PlotNumeric("Signal", AvgMACD);

PlotNumeric("Histogram", MACDValue);

}

// 30分钟周期指标计算

Range[i2:i2]

{

// KDJ计算

HighestValue_30m = HighestFC(High, Length);

LowestValue_30m = LowestFC(Low, Length);

k_30m = (Close - LowestValue_30m)/(HighestValue_30m-LowestValue_30m)*100;

kValue_30m = SMAValue(k_30m, SlowLength_kdj, 1);

DValue_30m = SMAValue(kValue_30m, SmoothLength, 1);

JValue_30m = 3*kValue_30m - 2*DValue_30m;

// 绘制KDJ指标

PlotNumeric("K_30m", kValue_30m);

PlotNumeric("D_30m", DValue_30m);

PlotNumeric("J_30m", JValue_30m);

PlotNumeric("Ref1_30m", 20);

PlotNumeric("Ref2_30m", 80);

// 输出计算过程

Commentary("30分钟周期:");

Commentary("HighestValue_30m="+Text(HighestValue_30m));

Commentary("LowestValue_30m="+Text(LowestValue_30m));

Commentary("k_30m="+Text(k_30m));

Commentary("kValue_30m="+Text(kValue_30m));

Commentary("DValue_30m="+Text(DValue_30m));

Commentary("JValue_30m="+Text(JValue_30m));

}

//------------------------------------------------------------------------

// 编译版本 GS2010.12.08

// 更改声明 TradeBlazer Software保留对TradeBlazer平

// 台每一版本的TradeBlazer公式修改和重写的权利

//------------------------------------------------------------------------

修正参数引用，使用 SlowLength_kdj 而非 SlowLength：
为不同周期的 KDJ 计算使用独立变量，避免数据覆盖：
确保每个周期的计算独立进行：

非常感谢老师！
